ASUS ESC4000 G2 2U Rackmount Server Barebone Dual LGA 2011 Intel C602-A PCH DDR3 1600/1333/1066

Be the first to review this product...

Dual LGA 2011
Dual Intel Xeon E5-2600 product family (135W)
16 x 240Pin Memory Slots
1+1 Redundant 1620W 80PLUS Platinum Power Supply

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Hybrid Computing with scalable expansion capability

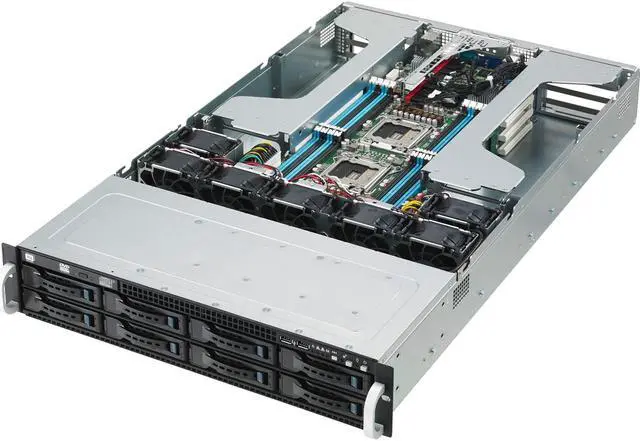

ASUS ESC4000 G2 is the latest high-density GPU server based on dual Intel Xeon E5-2600 processor platform, featuring eight hot-swap 3.5" SATA HDD cages, 1+1 80+ Platinum 1620W redundant power supply and nine PCI-E Gen3 x16 expansion slots. It delivers high density computing power, scalable expansion capability, intelligent thermal solution and green design, making it an ideal choice for applications in the HPC field of life and medical science, engineering science, financial modeling and virtualization.

General
Brand	ASUS
Model	ESC4000 G2
Form Factor	2U Rackmount

CPU Supported
CPU Type	Dual Intel Xeon E5-2600 product family (135W)
CPU Socket	Dual LGA 2011

Chipset
North Bridge	Intel C602-A PCH

Memory Supported
Memory Slots	16 x 240Pin
Max Memory Supported	512GB RDIMM
Memory Type Supported	DDR3 1600/1333/1066
Channel Supported	Quad Channel
ECC Supported	Yes
Registered	Yes

Storage Supported
Serial ATA	2 x SATA 600 + 2 SATA 300 + 4 x SATA 300
SATA RAID	RAID 0/1/5/10

Graphics
GPU/VPU	Aspeed AST2300
Video Memory	32MB

Expansion Slots
PCI Express	Total: 9 Full-length/Full-height 8 * PCI-E 3.0 x16 (4 at x16 Link or 8 at x8 Link) (Slot CPU1_PCIE2, CPU1_PCIE4, CPU2_PCIE1, CPU2_PCIE3 auto switch to x8 link if slot CPU1_PCIE1, CPU1_PCIE3, CPU2_PCIE2, CPU2_PCIE4 is occupied) Half-lenth/Low-profile 1 * PCI-E 3.0 x16 (Gen3 x8 Link) (PIKE SAS Card for Storage Enhancement) *Please refer to add-on card AVL in ASUS Download Site for support list

Communications
First LAN	Intel 82574L
Second LAN	Intel 82574L
Max. LAN Speed	Dual 1 Gigabit

Expansion Bays
Slim Bays	1 * Slim-type Optical Drive Bay
Hot-Swap Bays	8 x 3.5"

Panel Ports
COM	1
VGA	1
Rear USB	2
RJ45	3 x RJ-45 ports (One for ASMB6-iKVM)
Other Ports	1 x Internal A Type USB Port

Power Supply
Max. Power	1+1 Redundant 1620W 80PLUS Platinum Power Supply

Features
Features	*1 SATA port will be occupied once CD/DVD ROM is installed to the system, which means there are 2 combinations for the application. 1. 7 HDDs + 1 ODD. 2. 8 HDDs + External USB ODD. OS Support: CentOS 5.7/6.2 32/64-bit Windows Server 2008 R2 Windows Server 2008 R2 Enterprise Windows Server 2008 Enterprise 32/64-bit RedHat Enterprise Linux AS5.7/6.2 32/64-bit SuSE Linux Enterprise Server 11.2 32/64-bit VMWare ESX4.1/ESXi4.1 Management Solution: ASWM Enterprise default 1 x ASMB6-iKVM for KVM-over-Internet

Dimensions & Weight
Dimensions	750mm x 444mm x 87mm
Weight	19kg
