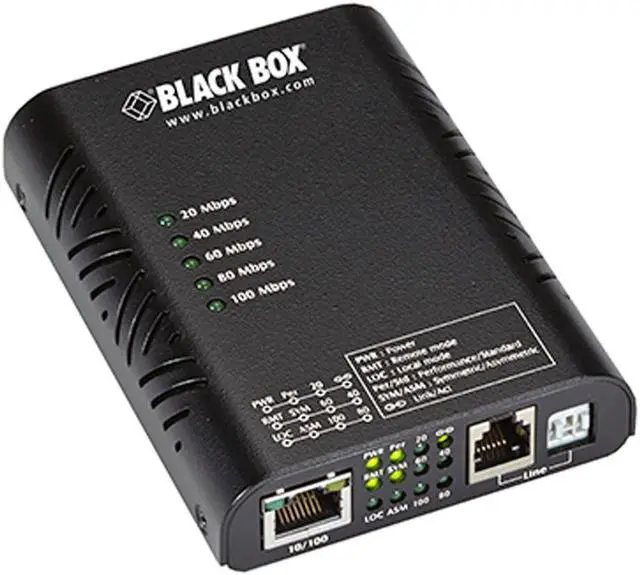

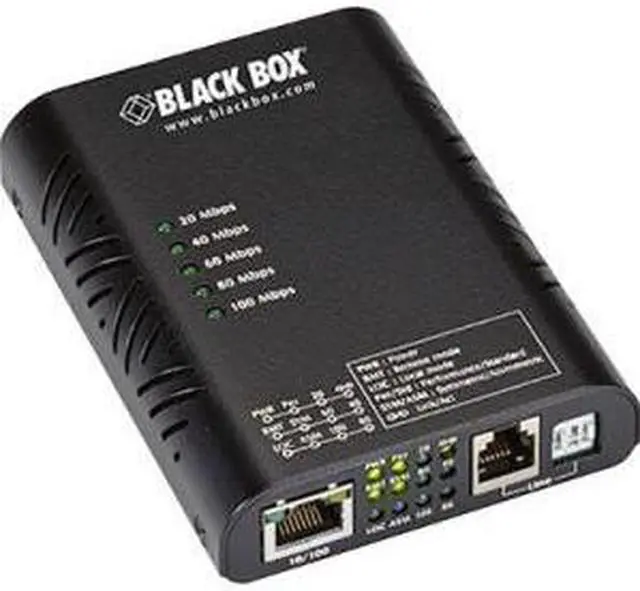

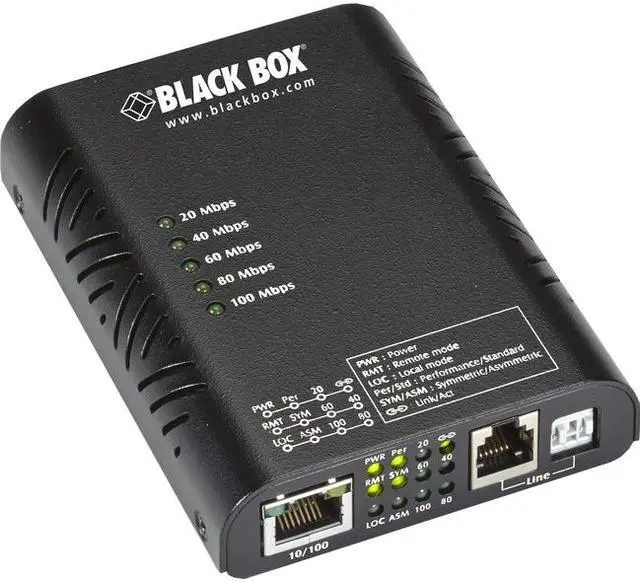

Black Box LB320A LinkGain Industrial Ethernet Extender

Save wiring costs by using voice-grade copper wire-even phone wire you already have installed.
Extends 10- or 100-Mbps Ethernet up to 1.6 miles (2.6 km) at 1 Mbps and up to 300 meters at 100 Mbps.
Perfect for connecting an isolated user in another building or in another part of a large building.
Symmetrical VDSL supports speeds of up to 100 Mbps.
Use a standalone or rackmount in the LinkGain Chassis (LB300A-RACK).
Hot swap extenders in and out of the rack without having to power down the entire system.
Transparent to network protocols.

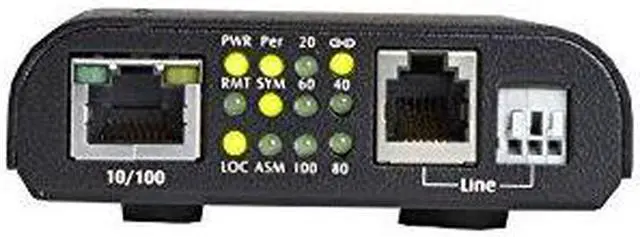

Six speeds with easy-to-read speed indicator LEDs on top of the extender.
Ethernet ports are Auto MDI/MDI-X and autosensing for speed and duplex.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

10/100, 1-Port

Model
Brand	Black Box
Model	LB320A

Details
Type	LinkGain Industrial Ethernet Extender
Color	Black

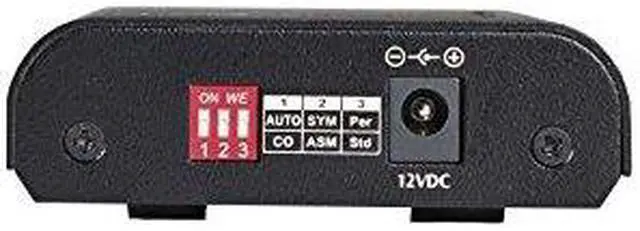

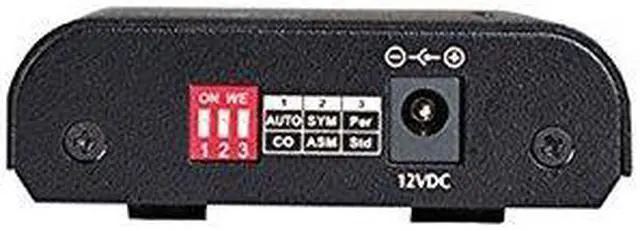

Specifications	Connectors : Ethernet Port: (1) 10/100BASE-TX port; Ethernet Extender Port: (1) RJ-11 and terminal block port Data Rate:100 Mbps at 960 ft. (300 m); 80 Mbps at 1280 ft. (400 m): 60 Mbps at 1920 ft. (600 m); 40 Mbps at 2560 ft. (800 m); 20 Mbps at 3840 ft (1200 m); 1 Mbps at 8320 ft. (2600 m) Environmental: Ambient Relative Humidity: 5 to 95%, noncondensing LED Indicators: Per unit: Power, Status; Ethernet Extender port: Link/Activity, Per, RMT, LOC, SYM, ASM, Line Speed Mounting Type: DIN-rail (top hat type 35 mm) or wallmounting Power Input: 12 VDC (DC jack) Consumption: 4.2 W maximum

Features
Features	Save wiring costs by using voice-grade copper wire-even phone wire you already have installed. Extends 10- or 100-Mbps Ethernet up to 1.6 miles (2.6 km) at 1 Mbps and up to 300 meters at 100 Mbps. Perfect for connecting an isolated user in another building or in another part of a large building. Symmetrical VDSL supports speeds of up to 100 Mbps. Use a standalone or rackmount in the LinkGain Chassis (LB300A-RACK). Hot swap extenders in and out of the rack without having to power down the entire system. Transparent to network protocols. Six speeds with easy-to-read speed indicator LEDs on top of the extender. Ethernet ports are Auto MDI/MDI-X and autosensing for speed and duplex.

Dimensions & Weight
Dimensions	0.94"H x 3.16"W x 4.3"D (2.38 x 8.03 x 10.9 cm)
Weight	0.33 lbs. (0.15 kg)

Additional Information
First Listed on Newegg	January 14, 2019
