Network switches. It's hard to get excited about them until they stop working, and that's the wrong kind of excitement, right? Well, if you have a home office or a small office, this switch just might be worth getting excited about.
It's got 8 RJ-45 ports and a 144Kb packet buffer. Designed to stay cool without a fan, so you can put it on a desktop and still have silence.Setup and operation is via a friendly web-page interface (password protected so no one can accidentally undo your good work), it has an 8,000 MAC address table, allowing up to 8,000 addressable devices on your network. It operates as a 10/100/1000 Mbps switch, with a total switching capacity of 16 Gbps, and throughput up to 11.9 million pps (64-byte packets). The switch software also includes basic data management functions such as QOS, VLAN support and tagging.
So, are you starting to get excited yet? Then check out this switch and get your network up and running!
Network switches. It's hard to get excited about them until they stop working, and that's the wrong kind of excitement, right? Well, if you have a home office or a small office, this switch just might be worth getting excited about.
It's got 8 RJ-45 ports and a 144Kb packet buffer. Designed to stay cool without a fan, so you can put it on a desktop and still have silence.Setup and operation is via a friendly web-page interface (password protected so no one can accidentally undo your good work), it has an 8,000 MAC address table, allowing up to 8,000 addressable devices on your network. It operates as a 10/100/1000 Mbps switch, with a total switching capacity of 16 Gbps, and throughput up to 11.9 million pps (64-byte packets). The switch software also includes basic data management functions such as QOS, VLAN support and tagging.
So, are you starting to get excited yet? Then check out this switch and get your network up and running!
Gigabit Network ConnectionThe HP J9029A features 8 Gigabit LAN ports to deliver up to 10X faster speeds than most 100M network connections and provides excellent usability.
SecurityThe management password function provides security so that only authorized access to the Web browser interface is allowed.
Quality of ServiceThe QoS, enabled by advanced queuing techniques using 802.1p, optimizes networked applications including voice, video and data storage. The broadcast control function cuts down on unwanted broadcasts to improve network traffic.
ManageabilityThe intuitive Web interface enables simple management via an easy-to-use Web browser interface for switch configuration, monitoring and administration. Discovery and mapping can be done via ProCurve Manager, available as a free download from the Web.
Learn more about the HP J9029A
Model
Brand
HP
Model
J9029A
Format & Standards
Format
External
Standards
IEEE 802.3x Flow Control IEEE 802.1AB Link Layer Discovery Protocol IEEE 802.1p Priority IEEE 802.3ad Link Aggregation Control Protocol IEEE 802.1Q VLANs
Network Management Type
Managed
Ports & Interface
Primary Ports
8 RJ-45 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-T, IEEE 802.3ab Type 1000Base-T)
Management password: provides security so that only authorized access to the Web browser interface is allowed
PoE
No
Stackable
No
SNMP
No
QoS
Yes
LACP
Yes
Layer
2
Port Mirroring
Yes
Module Support
No
Power

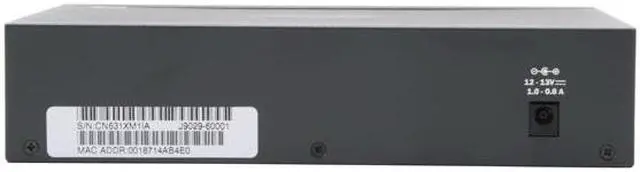

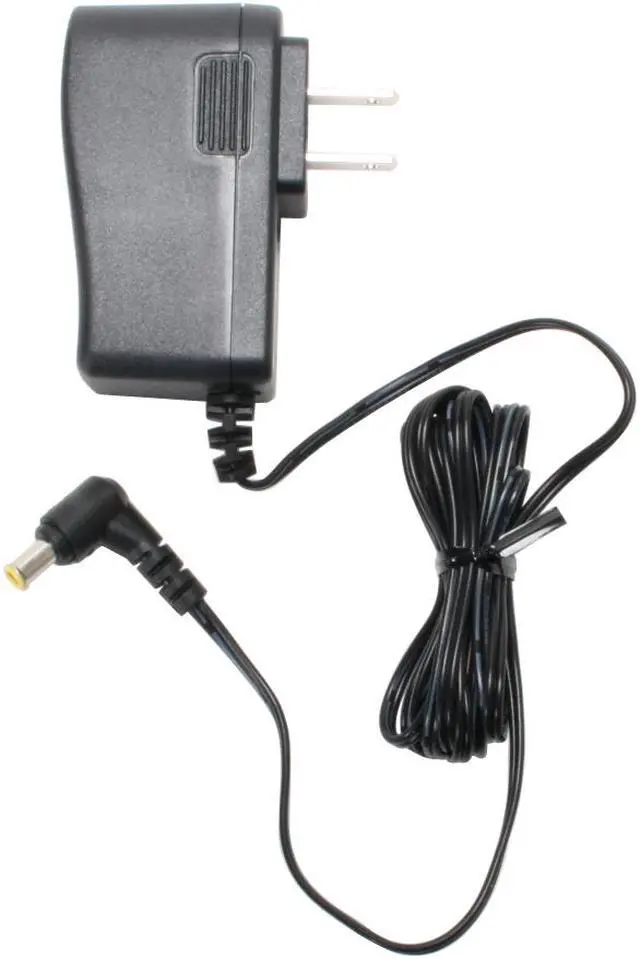

Voltage: 100-127 VAC/200-240 VAC Current: 1.0 A /0.8 A Power: 18 W Frequency: 50/60 Hz
Features
Features
Small form factor: ideal for desktop use, and space-efficient for deployment flexibility Fanless design: reduces noise and enables quiet operation, reducing distraction when deployed in open spaces Intuitive Web interface: enables simple management via an easy-to-use Web browser interface for switch configuration, monitoring, and administration Integration with ProCurve Manager IEEE 802.1AB Link Layer Discovery Protocol (LLDP) Comprehensive LED display with per-port indicators ProCurve/IEEE Auto-MDIX VLAN support and tagging 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.1p prioritization Broadcast control Port mirroring: enables traffic on a port to be simultaneously sent to a network analyzer for monitoring
