iStarUSA BPU-230SATA-BPL 2 x 5.25" to 3 x 3.5" SAS / SATA 6.0 Gbps Hot-Swap Cage - Lockable
- 5.25" Drives: 2
- Hotswap 3.5: 3
- Indicators: Power, HDD, fan, and high temperature
- Material of Handle: Aluminum
+
+
Overview
Specs
Reviews (20)
Any questions? Our AI beta will help you find out quickly.
Try me now

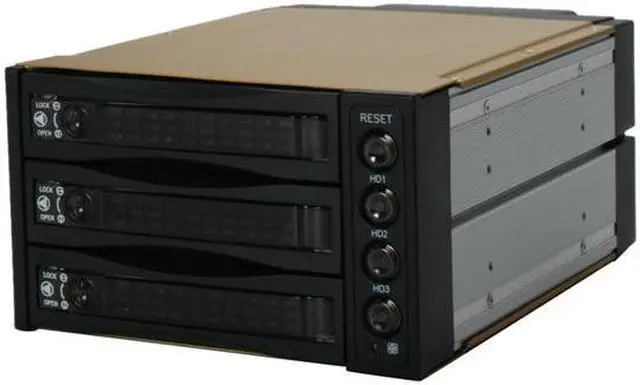

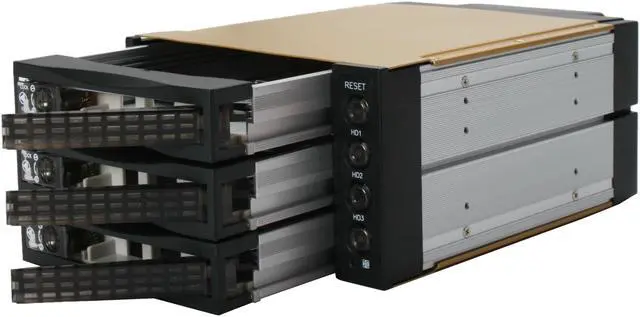

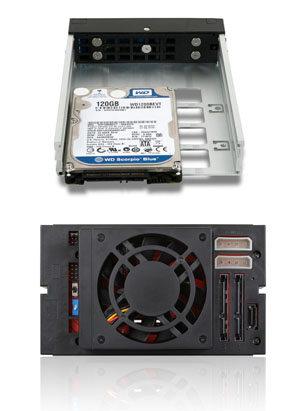

iStarUSA BPU-230SATA Two 5.25in. to Three 3.5in. SATA Hot-swap Raid Cage
Create more space for hard drives with hot-swap capability - the BPU-230SATA series supports RAID 1 / 0 / 1+0 / 5 configurations for high performance or redundancy data applications. Aluminum construction provides light weight but strong stability and an extra 70mm fan keeps hard drives at maximum performance. A high density multi-disk storage backplane allows multiple 3.5in. SAS/SATA hard drives to be mounted into two standard 5.25in. Aluminum construction provides great heat dissipation - required for high performance SAS/SATA drives - and is designed with excellent front to back vent airflow. Applications: Digital Audio Editing, Video Editing (SD or HD), Security Systems, SOHO SMEs With Limited HDD Tray, and Data Protection or Disk-to-Disk Backup
Features
- Stylish aluminum color handle and heat-sink body
- Supports Hot-Swap and RAID Configuration (needs an additional RAID controller)
- Aluminum Design with Conductive Dissipation Grooves

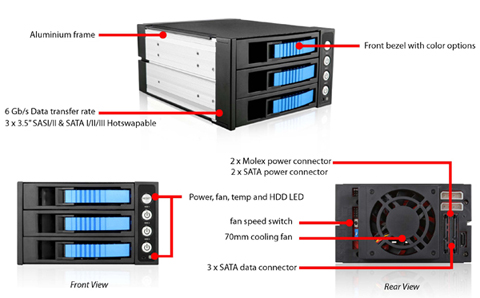

- Power, fan and high temperature LED indicators
- High Performance Transfer Rates - up to 6Gbps
- Supports 2.5in./3.5in. SAS I/II and SATA I/II/III HDDs
- Equipped with Fan Speed Control Switch
- 4TB Hard Drive Compatible
Specifications
| Model Number | BPU-230SATA |
| RoHS Compliance Version | Yes |
| Standard Drive Bays |
5.25in. Drives: Two Hotswap 3.5in.: Three |
| Hotswap HDD Type: | 3.5in. SAS I/II and SATA I/II/III |

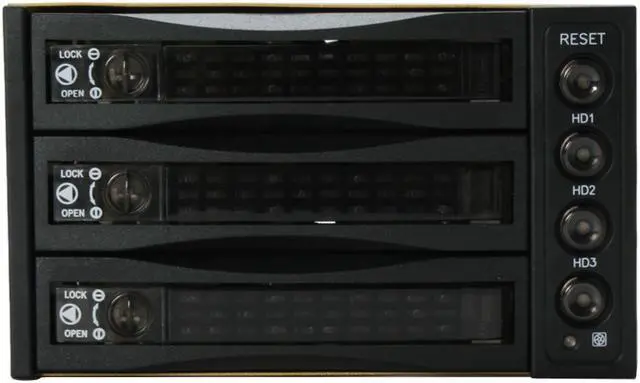

| Indicators | Power, HDD, fan, and high temperature |
| Material of Front Bezel | Aluminum |
| Material of Handle | Aluminum |
| Material of Main Chassis | Aluminum Design with Conductive Dissipation Grooves |
| Color of Front Bezel | Black / Blue / Red / Silver |
| Color of Main Chassis | Black |

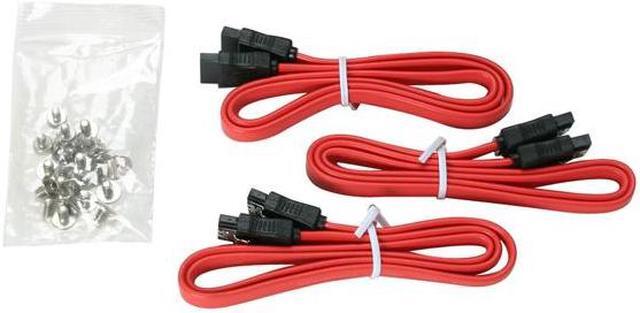

| Package Content | SATA Cable Included (three pieces) |
| Cooling Fan | 1 x 70mm |
|
Ordering Information (Part Number) |
Black Tray:BPU-230SATA-BLACK Blue Tray:BPU-230SATA-BLUE Red Tray:BPU-230SATA-RED Silver Tray:BPU-230SATA-SILVER Lockable Tray:BPU-230SATA-BPL |
| Dimensions (W x H x D) |
5.75in. x 3.39in. x 7.95in. 146mm x 86.1mm x 201.9mm |

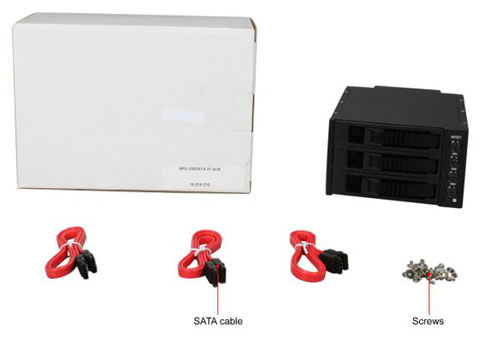

What's in the Box
