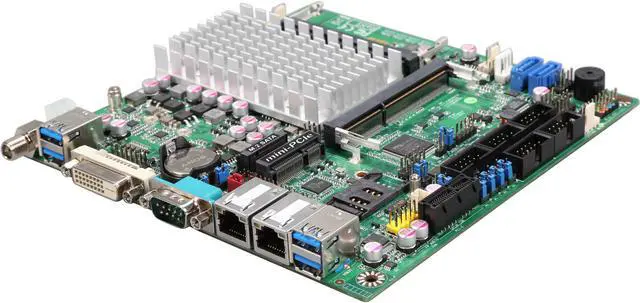

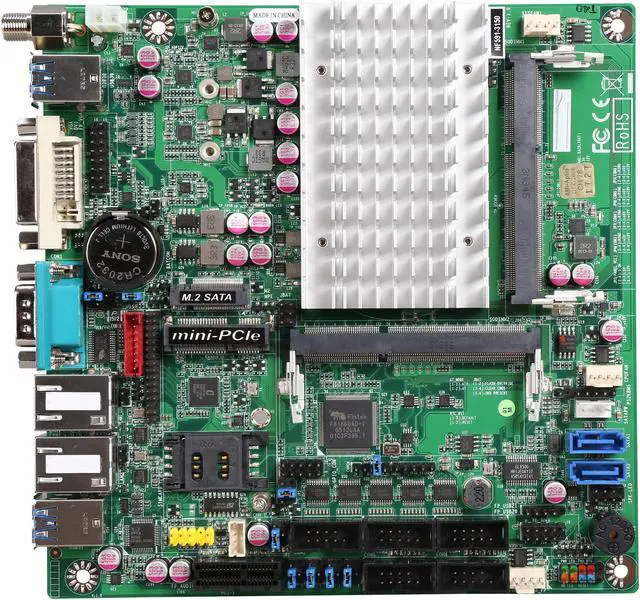

JetWay JNF591-3150 Intel Celeron N3150 SoC, 1.60GHz - 2.08GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support Mini ITX Motherboard / CPU / VGA Combo
- DDR3L 1600
- Intel HD Graphics, 320MHz - 640MHz
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the JETWAY JNF591-3150
| Brand | JetWay |
|---|---|
| Model | JNF591-3150 |
| Combo Type | Motherboard / CPU / VGA Combo |
| CPU | Intel Celeron N3150 SoC, 1.60GHz - 2.08GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support |
|---|
| Number of Memory Slots | 2x204pin SO-DIMM |
|---|---|
| Memory Standard | DDR3L 1600 |
| Maximum Memory Supported | 8GB |
| Channel Supported | Dual Channel |
| PCI Express x1 | 1 x PCI Express 2.0 x1 slot |
|---|---|
| Mini Card Slots | 1 x Full-size Mini-PCI Express slot, SIM Card Socket |
| Other Slots | 1 x M.2 slot (SATA only, M key-2242/2260/2280, shared with SATA2) |
| SATA | 2 x SATA 6.0Gb/s |
|---|
| Onboard Video Chipset | Intel HD Graphics, 320MHz - 640MHz |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 2.1 Channels |
| LAN Chipset | Realtek 8111G |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Realtek 8111G |
| Second LAN Speed | 10/100/1000Mbps |
| Video Ports | 1 x DVI-D |
|---|---|
| USB 3.0 | 4 x USB 3.0 |
| Onboard USB | 2 x USB 2.0 Pin Headers for up to 3 additional USB 2.0 Ports |
|---|---|
| Other Connectors | 5 x Serial Port Headers (RS232, +5V/+12V) 1 x 24-bits Dual Channel LVDS connector/Inverter 1 x GPIO header 1 x Chassis Intrusion header 1 x AT/ATX Mode jumper 1 x PS/2 Mouse/Keyboard header 1 x 9-pin Audio header (Line Out & MIC) 2 x 2-pin LAN LED header 1 x VGA header 1 x 4-pin 3W Amplified speaker header (Left+Right) 1 x 5-pin SMBUS header 1 x Front Panel header 3 x Fan headers 1 x SIM Card Socket 1 x 4-pin Power Output (Male) 1 x 2-pin +12V Alternate Power connector (Molex 5566-2) |
| Features | Intel Celeron Braswell N3150 SoC Processor Embedded Long-life Series, Lifecycle through Q2'2020 Ultra slim, low-power, thin form factor design (board z-height is 20mm) Supports M.2 (SATA only, M key-2242/2260/2280) Supports VGA, DVI-D, LVDS 3 Independent Display ECO-design for EuP/ErP |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | October 19, 2015 |
|---|
