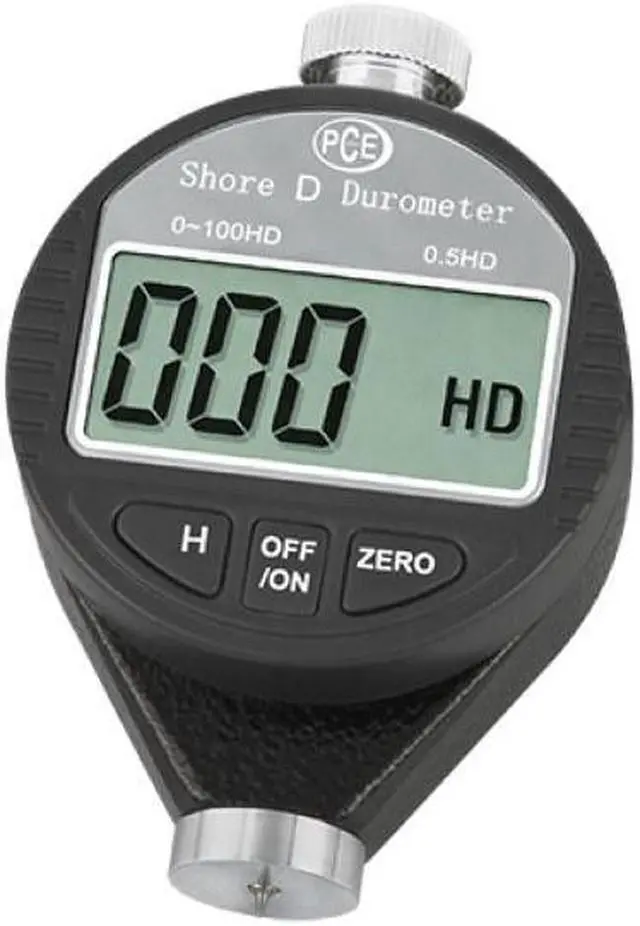

PCE-DD-D Digital Durometer, Material Tester, 0 to 100 Shore D
- For Shore D hardness testing
- Ideal for use with hard rubber, hard resin, acrylic, glass, thermoplastic, etc.
- Handheld, portable, digital measuring device
- Measurement range: 0 ... 100 Shore D
- Accuracy: ± 2 Hardness - Grade
- Large, easy-to-read display
- Hold functionality
- Measurement range: 0 ... 100 Shore D
- Resolution: 0.5 Hardness - Grade
- Accuracy: ± 2 Hardness - Grade
- Depth of indentation: 0.0 ... 2.5 mm / 0.0 ... 0.01 in
- Pressure force: 5 kg / 11.02 lbs
- Indenter: 30°
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

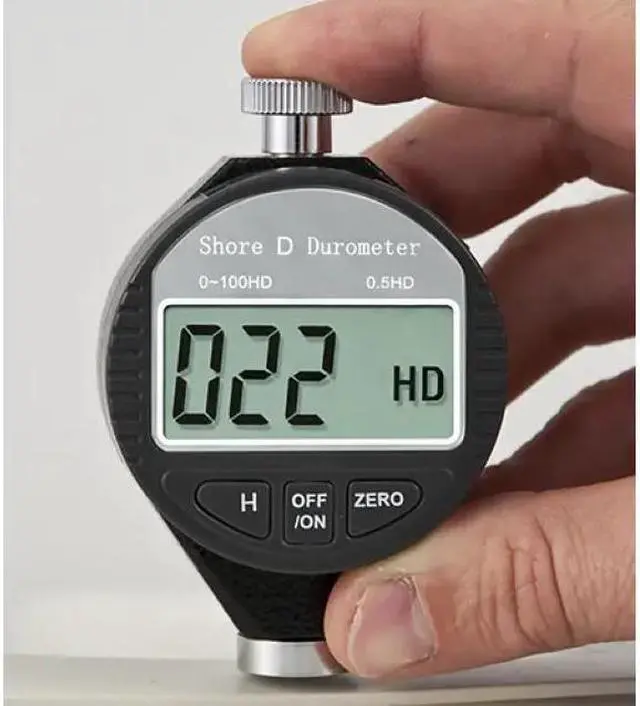

PCE-DD-D is a Shore D durometer or material hardness tester used to measure the Shore hardness of materials such as hard rubber, hard resin, acrylic, glass, thermoplastic and more. This Shore D hardness tester uses an impact rod with a 30º conical point and 50 Newtons (N) of force to make a surface indentation on material samples with a minimum thickness of 6 mm or 0.24 in.
(Note: If a material sample does not meet the minimum thickness required, the sample should be reinforced on the back with more of the same material. )
(Note: If a material sample does not meet the minimum thickness required, the sample should be reinforced on the back with more of the same material. )
