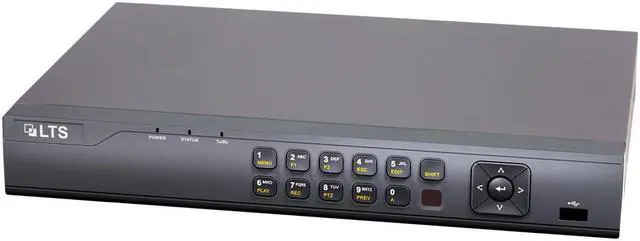

LTS LTD8504M-ST 4CH Up to 8MP TVI & AHD Analog CVI 4CH 4MP IP 5 in 1 HDMI 2K DVR

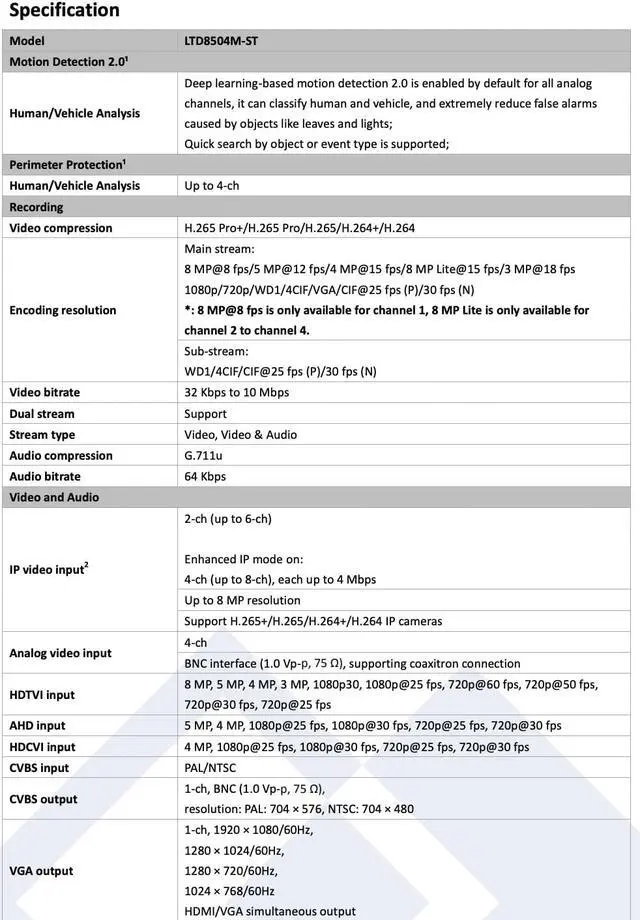

Specifications Motion Detection 2.0 ¹ Human/Vehicle Analysis Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; Perimeter Protection¹ Human/Vehicle Analysis Up to 4-ch Recording Video compression H. 265 Pro+/H. 265 Pro/H. 265/H. 264+/H. 264 Encoding resolution
Main stream: 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P) /30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel
4.
Sub-stream: WD1/4CIF/CIF@25 fps (P) /30 fps (N) Video bitrate 32 Kbps to 10 Mbps Dual stream Support Stream type Video, Video & Audio Audio compression G. 711u Audio bitrate 64 Kbps Video and Audio 2IP video input 2-ch (up to 6-ch)
Enhanced IP mode on: 4-ch (up to 8-ch), each up to 4 Mbps Up to 8 MP resolution Support H. 265+/H. 265/H. 264+/H. 264 IP cameras Analog video input 4-ch BNC interface ( 1.0 Vp-p, 75 ), supporting coaxitron connection HDTVI input 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps AHD input 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps HDCVI input 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps CVBS input PAL/NTSC CVBS output 1-ch, BNC ( 1.0 Vp-p, 75 )
Resolution:

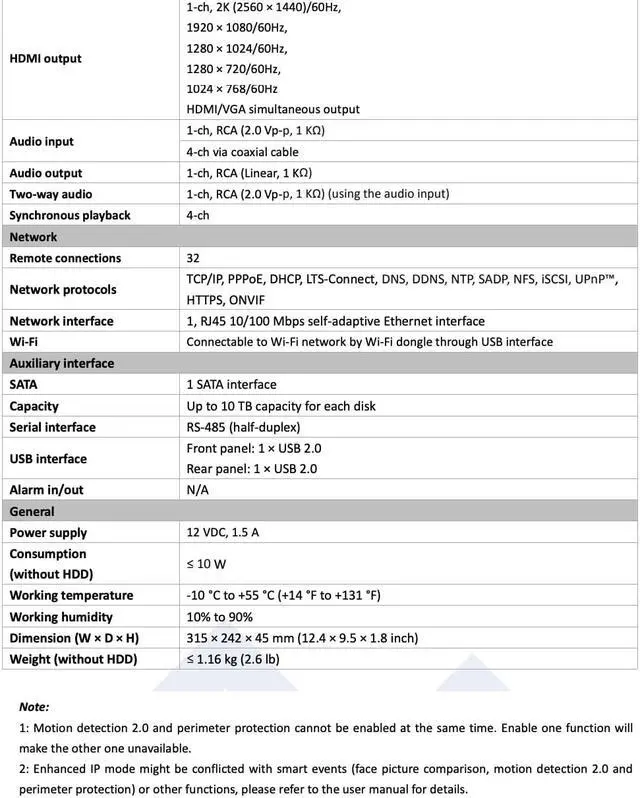

PAL: 704 × 576, NTSC: 704 × 480 VGA output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output HDMI output 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output Audio input 1-ch, RCA ( 2.0 Vp-p, 1 K) 4-ch via coaxial cable Audio output 1-ch, RCA (Linear, 1 K) Two-way audio 1-ch, RCA ( 2.0 Vp-p, 1 K) (using the audio input) Synchronous playback 4-ch Network Remote connections 32 Network protocols TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF Network interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface Wi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface Auxiliary Interface SATA 1 SATA interface Capacity Up to 10 TB capacity for each disk Serial interface RS-485 (half-duplex) USB interface
Front panel: 1 × USB 2.0
Rear panel: 1 × USB 2.0 Alarm in/out N/A General Power supply 12 VDC, 1.5 A Consumption (without HDD) 10 W Working temperature -10 °C to +55 °C (+14 °F to +131 °F) Working humidity 10% to 90% Dimension (W × D × H) 315 × 242 × 45 mm ( 12.4 × 9.5 × 1.8 inch) Weight (witdout HDD) 1.16 kg ( 2.6 lb)
