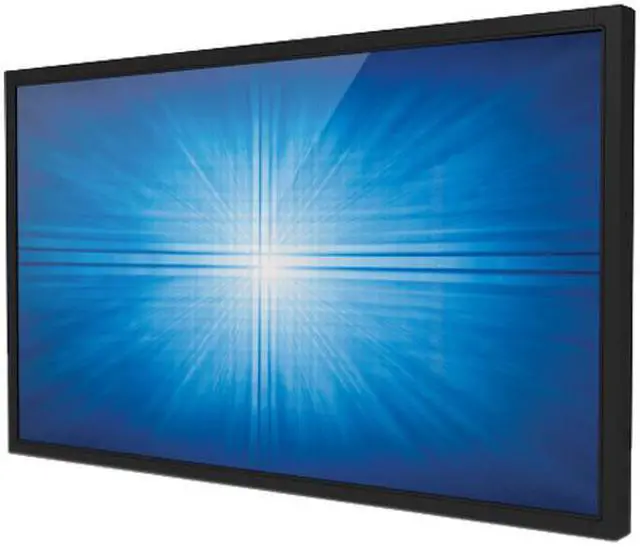

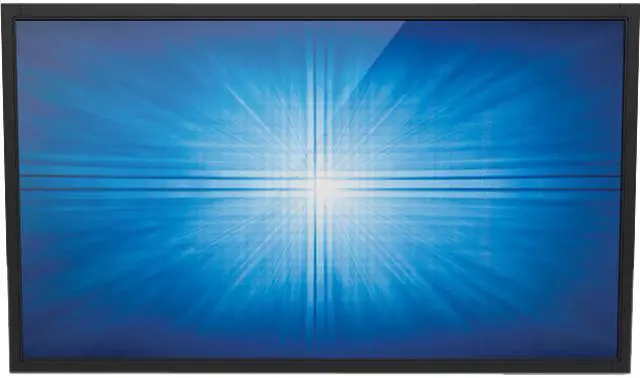

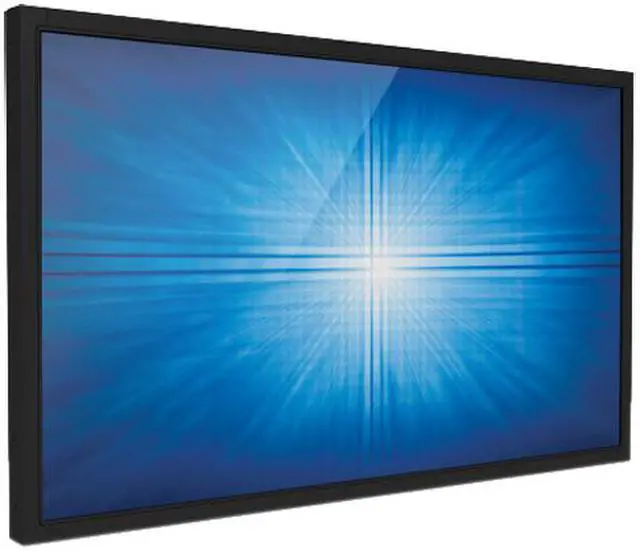

Elo E000444 4243L 42" Full HD Professional-Grade IntelliTouch Dual Touch Open Frame Touchscreen
- 42", 1920 x 1080, 60Hz, 450nit
- Featuring a compact form factor and optional rack- and front-mount bezels, the 4243L is easy to integrate
- IntelliTouch® surface acoustic wave (SAW) dual-touch offers the ultimate in optical quality; all 4243L touchscreens provide pure glass construction to deliver a clear, bright and long-lasting performance
- Commercial-grade - all products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated)
- Integrated power supply
- Mounting Options 400, 400, 6mm VESA mount; side mounting brackets included
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MAIN OVERVIEW FEATURES:

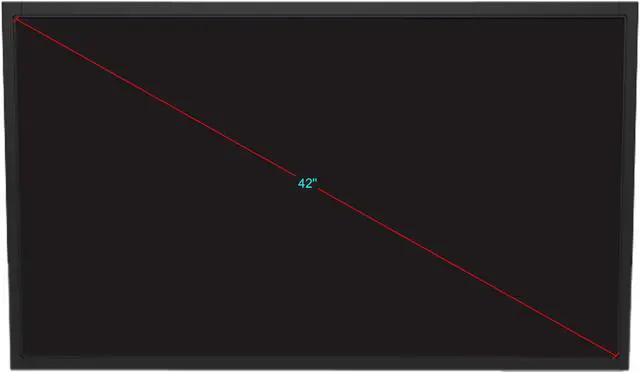

- Screen Size: 42"
- Display Screen Type: LCD
- Touchscreen: Yes
- Display Resolution: 1920 x 1080
- Backlight Technology: LED
- Scan Format: 1080p
- Brightness: 500 Nit
- USB: Yes
- DVI: Yes
- HDMI: Yes
- Input Voltage: 110 V AC, 220 V AC
- Color: Black
- Height: 22.6"
- Width: 38.5"
- Depth: 2.6"
- Weight (Approximate): 44.09 lb
- Package Contents:
- 4243L 42-inch Open-Frame Touchmonitor
- Side mounting brackets
- Touch/Video/Accessory Cables
- Environmentally Friendly: Yes
- Environmental Certification: RoHS, China RoHS
- Limited Warranty: 3 Year
Elo 4243L 42" IntelliTouch Full HD Open-Frame Interactive Digital Signage Display

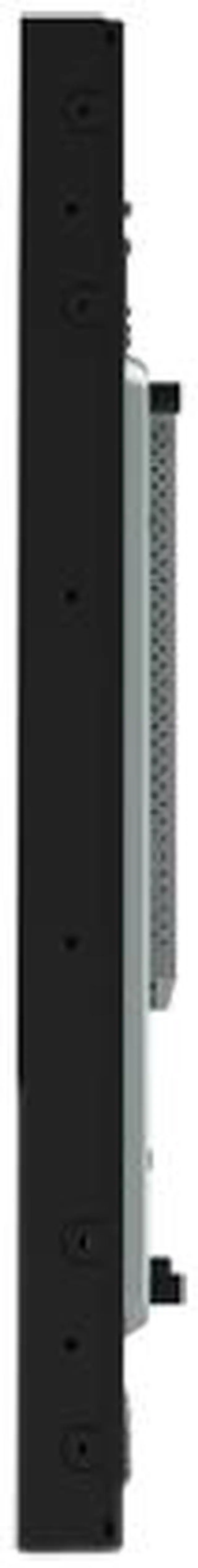

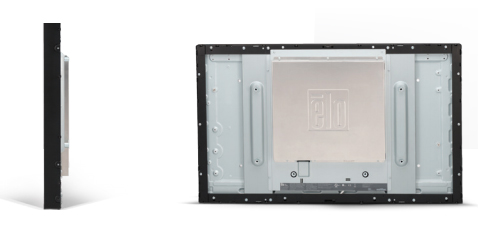

The Elo Touch Solutions 4243L 42-inch full HD open-frame touchmonitor provides smooth dual-touch performance with IntelliTouch Plus surface acoustic wave technology. The 4243L touchmonitor is 2.6" (65mm) in total thickness and less than 1" (25mm) in border width. The new sleek mechanical design enables thinner and smaller kiosk design for various applications like retail, hotel, gaming, transportation and other commercial users. The touch screen glass tested with robust "ball-drop" requirements supporting applications in demanding public access environments.
The 4243L features a unique, injection-molded bezel with a virtually invisible water-resistant seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a USB touch interface add to the versatility of the 4243L.
Benefits
- 1920 x 1080 full HD provides a bright, high contrast display with wide-view angle that easily attracts and holds the user's attention
- IntelliTouch Plus surface acoustic wave technology provides dual-touch performance
- New sleek design: 2.6" total thickness; less than 1" borders; light weight - 44 lbs (20kg)
- LED backlighting reduces power consumption and generates less heat than traditional CCFL backlights
- Commercial durability enabled with glass "ball-drop"
- Multiple mounting options are available
- Worldwide agency approvals and a 3-year standard warranty
Specifications
| Model | 4243L |
| Color | Black |
| Active Display Area | 36.6 x 20.6" (930 x 523mm) |
| Dimensions | 38.5 x 2.6 x 22.6" (978 x 65 x 575mm) max. |
| LCD Technology | Active matrix TFT LCD with LED backlight |
| On-Screen Display (OSD) | Accessible through switches on the OSD Control Remote accessory. Controls: Menu, Up, Down, Select; Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Source; Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese; Lockouts: OSD, Power |

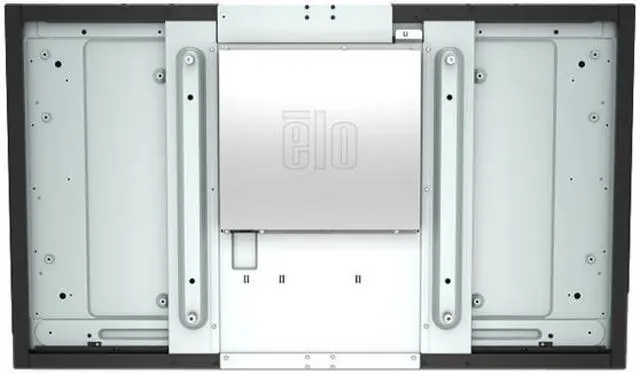

| Mounting Options | VESA 4-hole mount per MIS-F, 400, 400, 6mm (side mounting brackets included with unit) |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 x 1080 |
| Preset Video Timings | 640 x 480 @ 60Hz, 720 x 480 @ 60Hz, 720 x 576 @ 50Hz, 800 x 600 @ 56Hz, 1024 x 768 @ 60Hz, 1280 x 720 @ 50Hz, 1280 x 720 @ 60Hz, 1280 x 960 @ 60Hz, 1280 x 1024 @ 60Hz, 1440 x 900 @ 60Hz, 1366 x 768 @ 60Hz, 1680 x 1050 @ 60Hz, 1920 x 1080 @ 50Hz, 1920 x 1080 @ 60Hz |
| Number of Colors | 1073 Million |
| Brightness (typical): - LCD Panel - IntelliTouch Plus - No Touch |
500 nits 450 nits 450 nits |
| Response Time (Tr + Tf) (typical) | 8ms |
| Viewing Angle (typical) | Horizontal: ± 89 degrees; Vertical: ± 89 degrees |
| Contrast Ratio (typical) | 4000:1 |
| Video | Analog VGA on Female DE-15 connector; HDCP-capable HDMI 1.3 on HDMI Type A receptacle connector (ET4243L-XXWA models only); Digital DVI on Female DVI-D, Dual-Link connector (ET4243L-XXAA models only). Input Video Horizontal Sync frequency range: 31.5-75KHz, Input Video Vertical Sync (frame rate) frequency range: 47-63Hz |
| Weight | Unpackaged: 44 lbs (20kg) Packaged: 61 lbs (27.67kg) |
| Temperature | Operating: 32 - 104°F (0 - 40°C) Storage: -4 - 140°F (-20 - 50°C) |
| Humidity (non-condensing) | Operating: 20% - 80% Storage: 10% - 95% |
