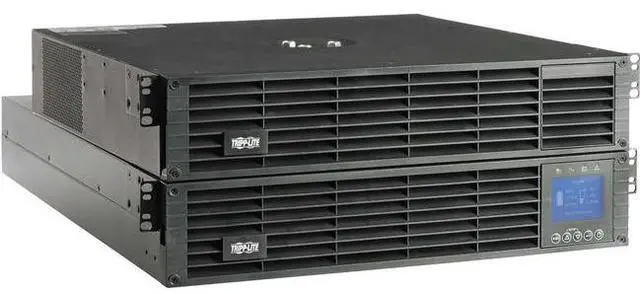

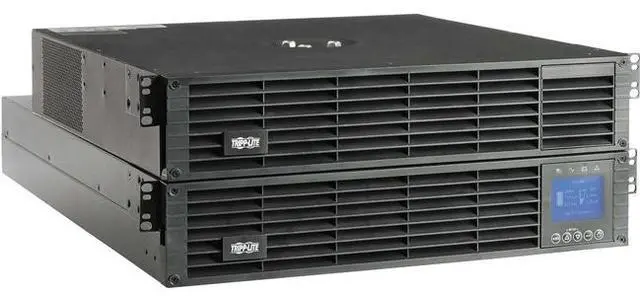

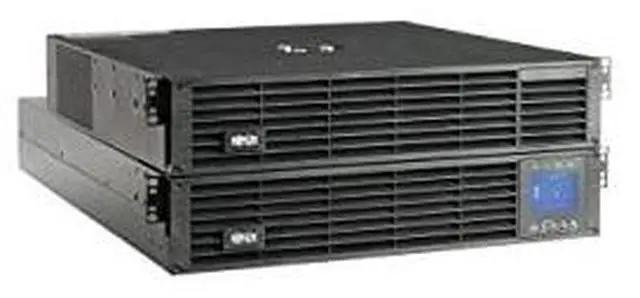

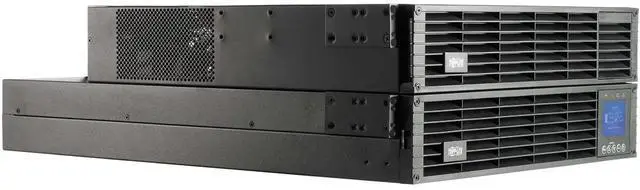

Tripp Lite Smart Online Ups 3000Va 2700W 208/120V Step-Down Transformer 4U

2U Double-Conversion UPS Protects Equipment against Damage Downtime and Data Loss This 208V and 120V 60 Hz UPS system maintains perfect output by converting AC input to DC then reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in both on-line and battery modes. Featuring a 2.7 kW capacity high 0.9 power factor 570 joules of surge suppression true on-line operation with pure sine wave output and zero transfer time in on-line double-conversion mode the SmartOnline® SU3000LCD2UHVTF double-conversion UPS provides the highest level of AC power protection and battery backup for critical network closet computer room and data center equipment.

With the included 2U step-down transformer this 3kVA UPS system can support both low- and high-voltage equipment. Set Power Strategies to Reflect Your Protection Priorities Pick your power strategy from precise power for sensitive systems to the highest possible electrical efficiency while ensuring 100% uptime.

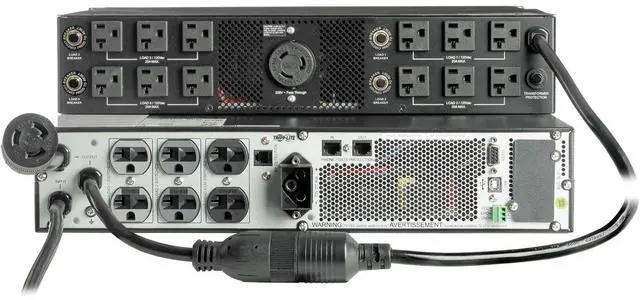

Choose from four selectable strategies: Max Efficiency Max Quality Frequency Regulation and Auto Adaptive which automatically offers increased efficiency when utility power conditions are good and enhanced power quality when power conditions are poor. Individually Controllable Load Banks Let You Access and Control Outlets Remotely The UPS and transformer combined feature 20 outlets in total-12 unswitched NEMA 5-15/20R on the transformer six NEMA 6-15/20R on the UPS and one unswitched NEMA L6-20R on each. Four NEMA 6-15/20R outlets are split into two switchable load banks allowing you to reboot select components or shed loads remotely. Reliable Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable hot-swappable internal battery provides 13.5 minutes of support at half load (1350W) and five minutes at full load (2700W) keeping protected equipment operational through power failures. For mission-critical applications demanding scalable extended runtime the UPS supports "smart" external battery packs such as Tripp Lite's BP72V18-2US (sold separately). Both the internal batteries and sensor-enabled external battery packs are automatically sensed and configured during installation and replacement to offer accurate remaining runtime during outages and battery-age notifications. The intelligent battery management system with temperature-compensated charging extends battery life. Automatic Bypass Maintains Utility Output During Fault Conditions Auto-bypass mode keeps connected equipment powered and operational even during UPS fault conditions.

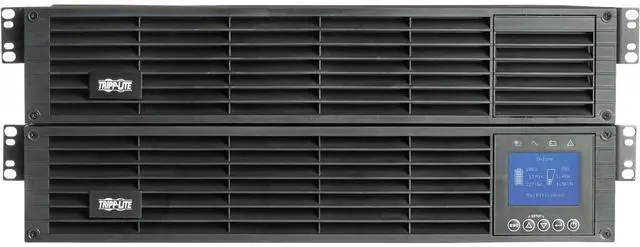

Automatically Turns Back On When Power Is Restored Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages even when batteries are expired and require replacement. Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring The front-panel LCD screen reports UPS operating mode detailed UPS status and site-power information as well as a variety of advanced UPS setup and configuration options. LEDs indicate AC input/output battery and fault status. Advanced Communications Ports Allow for Automatic Saves and
