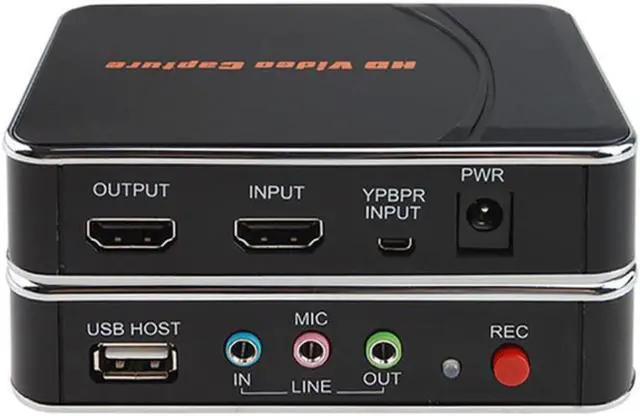

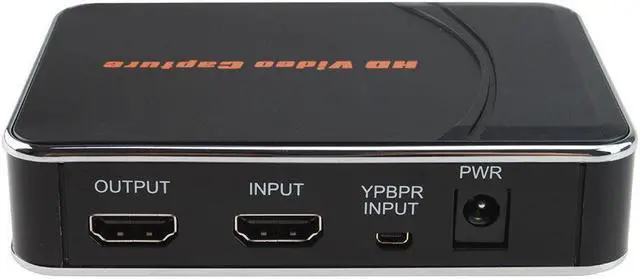

HD Game Video Capture 1080P HDMI YPBPR Recorder For XBOX One/360 PS3 /PS4 with One Click No PC Enquired No Any Set-up

Model Number:AC4625
Package:Yes
Interface Type:USB
Type 1:Video & TV Tuner Cards
Type 2:HD Game Capture
Type 3:HD video capture module
Type4:1080P HDMI/YPbPr Recorder-ezcap280
Type 5:capture card/video card
Type 6:capture card hdmi
Type 7:hdmi capture usb
Type8:stream

HD Game Video Capture 1080P HDMI YPBPR Recorder For XBOX One/360 PS3 /PS4 with One Click No PC Enquired No Any Set-up
NOTE:
1. The encrypted HDMI signal (HDCP) is not supported, if the HDCP function can not be disabled on the game console, please connect it to the YPBPR IN port on the capture, such as PS3.
2. The MIC IN port is available only when you use the YPBPR IN port, it would not work when you use the HDMI IN port.
3.U disk supports 32G and below Mobile hard disk supports 2TB and below, please format the U disk or mobile hard disk to FAT32 or NTFS format before use! If the mobile hard disk exceeds 1TB, you need to partition the mobile silver disk MBR and format it into NTFS format
Features:
Share The Action with Friends or with The World --- Record your game videos to post to social media & YouTube or to share with friends, on-board H.264 hardware encoder keeps file sizes small for easy transferring, editing and uploading later, a video editing software CD is enclosed with the game video capture. Please Note: 1. It is a video signal recorder, not a media player box, can NOT export streaming media; 2. HDCP signal can NOT be recorded
ADD COMMENTARY TO CUSTOMIZE -- You can connect a general 3.5mm microphone to the MIC input with the YPbPr IN; It is NOT available when you're connected via HDMI IN
1080P HD Quality Recording in A Click --- No PC requirement! Just connect a USB flash drive (FAT32, 32GB Max.) to the video game capture and click record button! You can begin to record the action on the screen anytime, and press it again to stop. Universal design is compatible with most HDMI and YPbPr outputs, so with one recorder you can capture footage from Wii U, Wii, Xbox 360, Xbox One, PS4 game consoles, laptop, DVD Media player and more (Does NOT support HDMI OUT on PS3 directly)
Specifications:
Size: 11*7.5*2.5cm
Interface: USB 2.0 host
Video Input: Digital / HDMI, Analog / Component Video.
Audio Input: Digital / HDMI, Analog / RCA Audio L/R, 3.5mm Line In
Video Output: Digital / HDMI (Pass-through from HDMI or Component).
Audio Output: Digital / HDMI(Pass-through from HDMI or Audio RCA L/R Input),
Analog / 3.5mm Stereo (Pass-through from HDMI or Audio RCA L/R Input)
Codec: Hardware MPEG4 encoder
User Interface: On-board Hot Button for one-click recording / streaming
LED indicator for working sratus.
Storage Media: USB Flash Disk, Portable Hard Disk (exFAT format is not supported)
Input Resolution / Pass-through:
720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i),
1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
Capture Resolution:
720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i),
1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)
Record Format: Video / AVI MPEG4, Audio / AAC Stereo
Record Quality: Max
18Mbps@1080P
30fps
Record File: Max 2GB/per file
Record Place: Max 140MB/minute, 8.4GB/hour
Power Supply: DC 5V 2A
Package Content :
1*1080P HDMI/YPbPr Recorder
1*Component video audio connection cable
1*HDMI cable
1*Power supply(US Plug)
1*Video editing software CD
