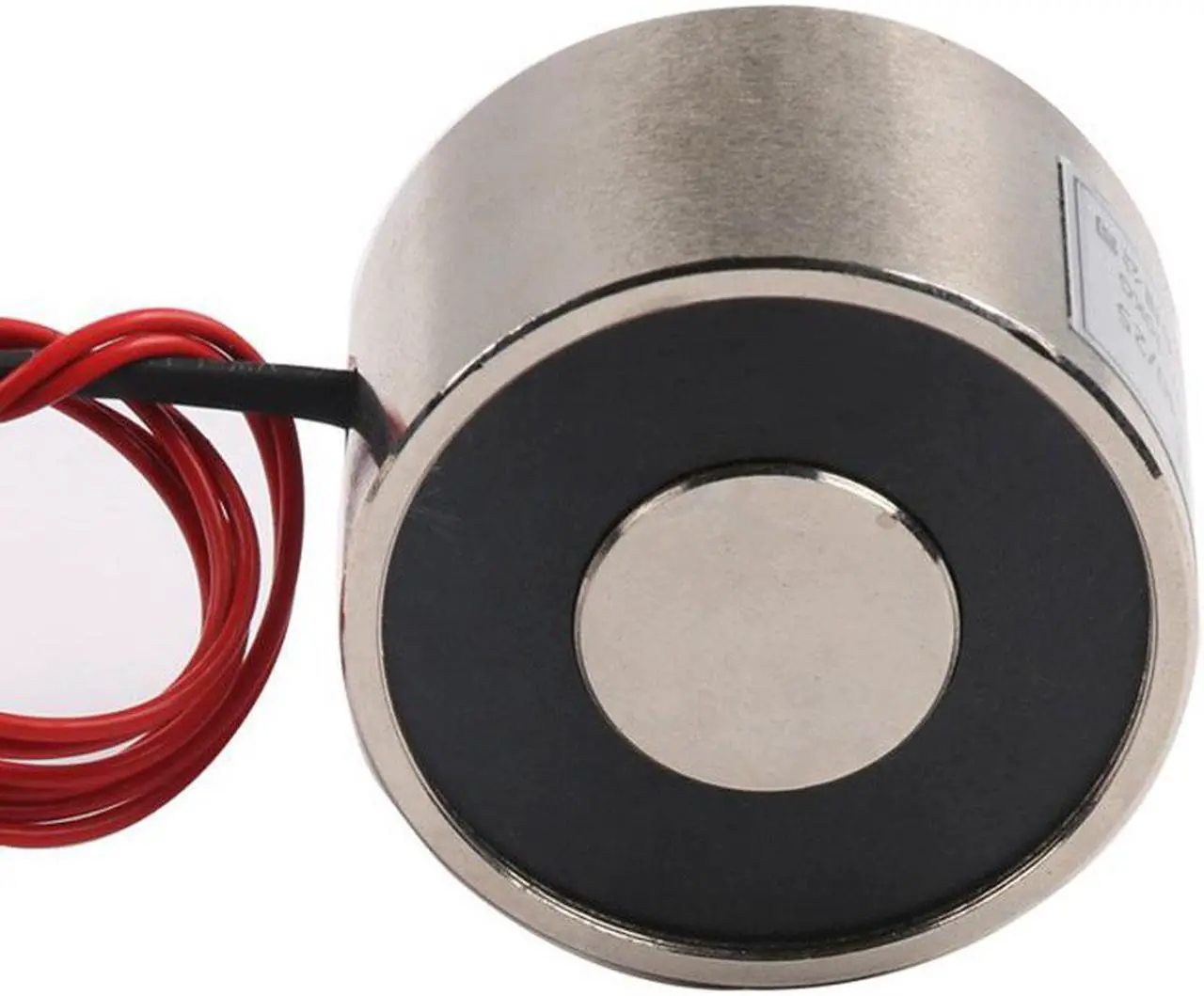

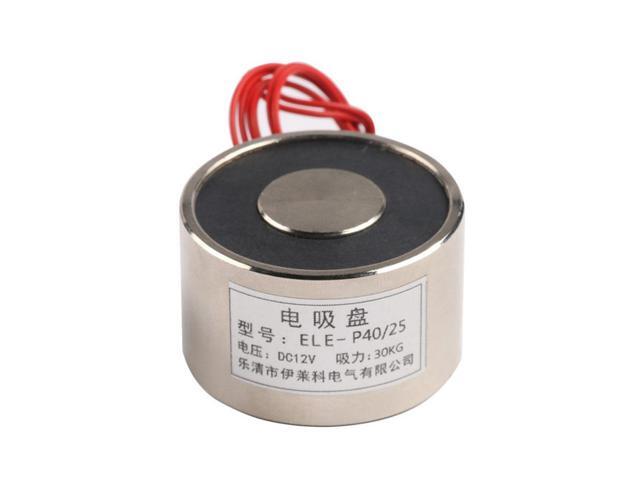

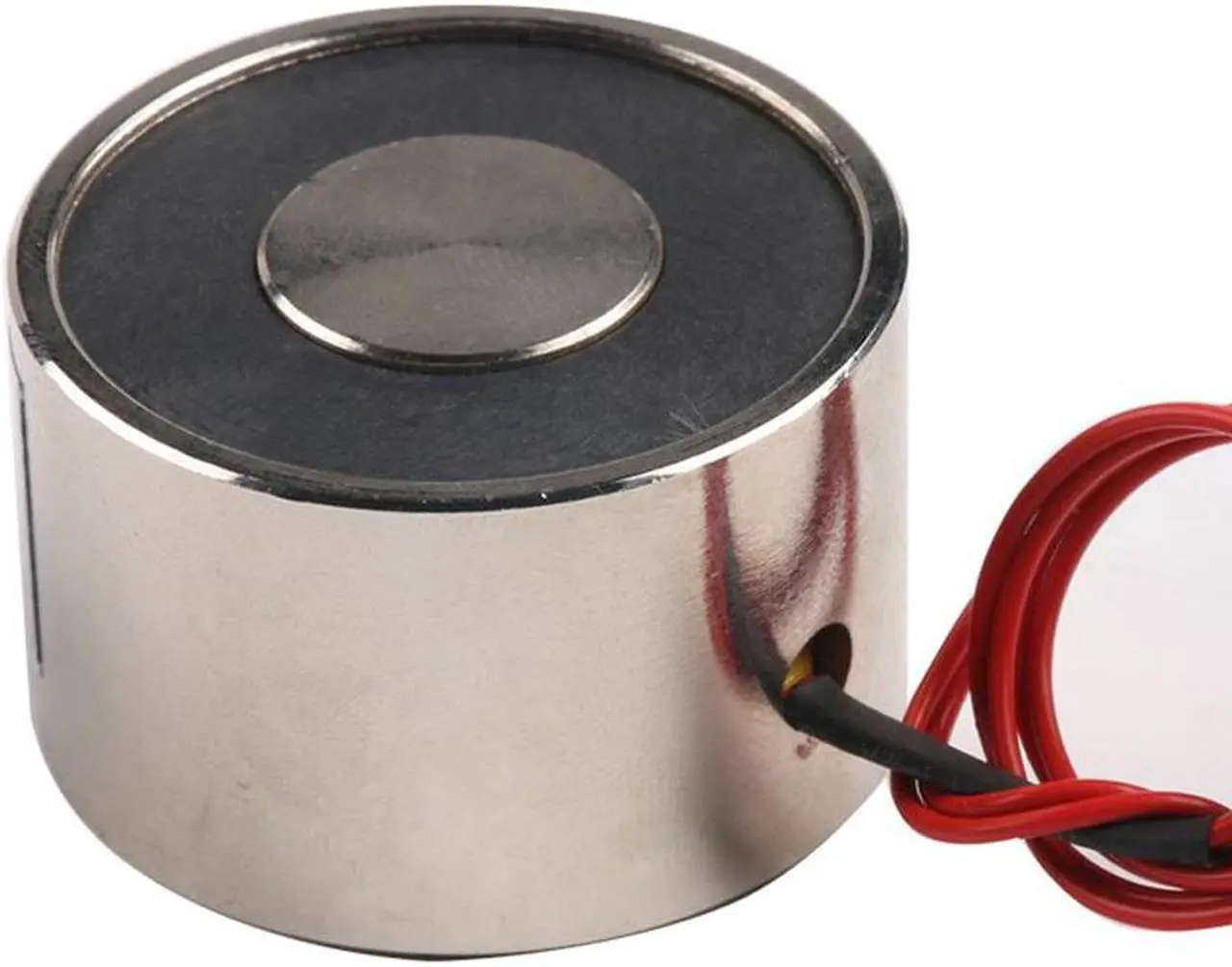

New ELE-P40/25 30kg Electromagnet Electric Lifting Magnet Solenoid Lift Holding 8W DC 24V

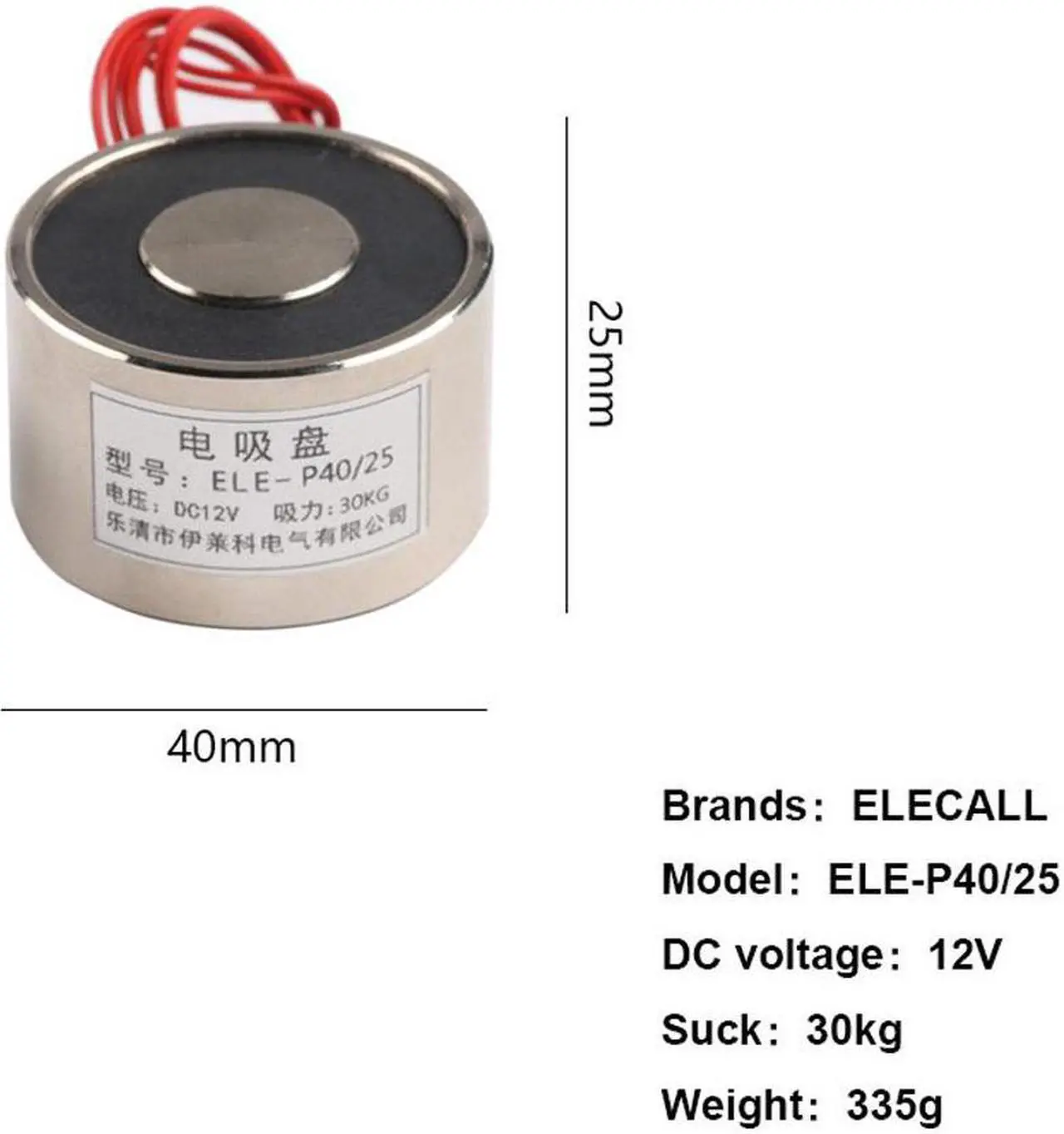

The electromagnet must be used in accordance with the following method to achieve maximum suction weight.1,The subject to be sucked must be of materials that with good magnetic properties.2,Must use with correct power supply and rated voltage. 3, The surface of the subject must be flat and clean.4,The contact area must be larger than the surface area of the electromagnet(The maximum external diameter of electromagnet)5, The thickness of subject needs to be larger than 8mm, the suction strength decreases with the thickness.6, There should not be gap, or other subjects between the sucked subject.If any of the above is violated, the suction power will be reduced. Description*Electric lifting magnet.*Powerful and compact.*Smooth and flat surface.*Low consumption and reliable.* Ambient temperature within 130 degrees.*Widely applied in automations: assembly line, sorting machine, mechanical arm, experimental facility, etc* Electromagnet in working condition electromagnetic conversion would produce a certain amount of heat, electricity more frequently the higher temperature, which is a normal phenomenon.FuturesBrand Name:ELECALLModel:ELE-P40/25Item:Holding Electric MagnetInput Voltage:24V DCCurrent: 0.33APower Consumption: 8WHolding Force: 30kg/66lbsWeight:335gMaterial: MetalColor: SilveryDiameter: 40 mmCenter Diameter: 18 mmHeight: 25 mmLead Length: 300 mmThread Size: M5
