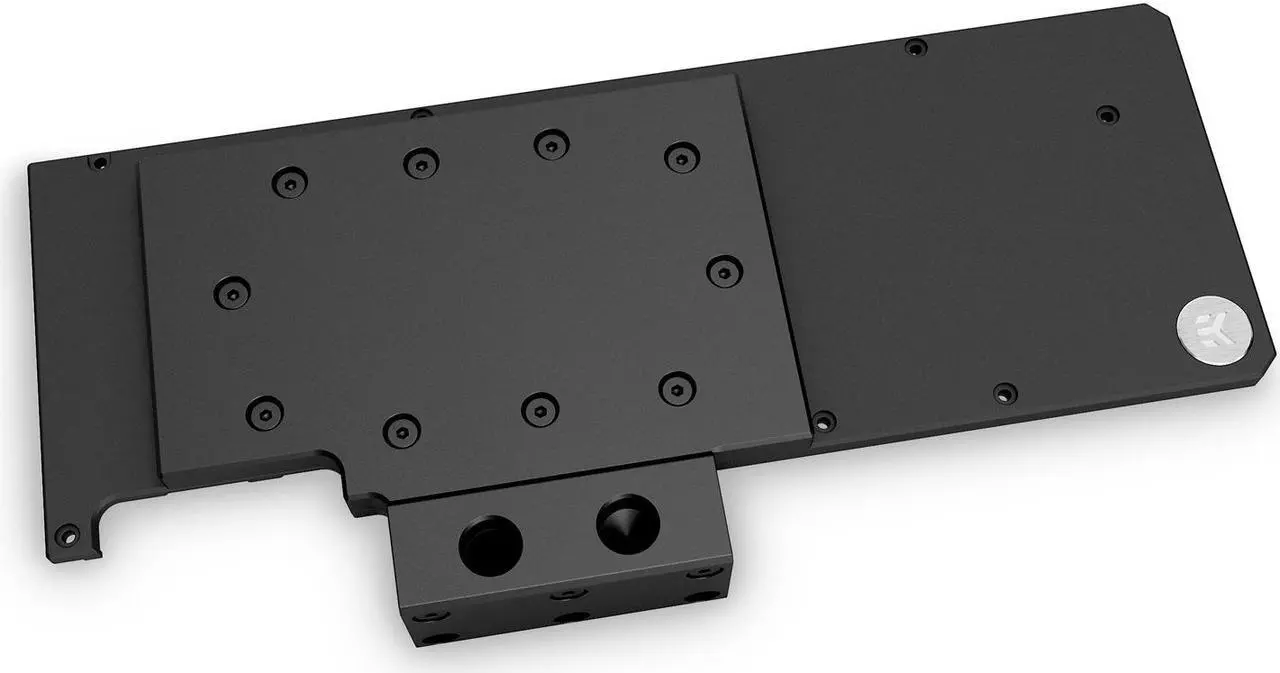

EKWB Quantum Vector XC3 RTX 3080/3090 Active Backplate - Acetal

EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate - Acetal is a cutting-edge addition to the EK® Quantum Line. It is made to complement the existing EK-Quantum Vector XC3 RTX 3080/3090 water blocks and actively cool the backside of all EVGA® GeForce RTX 3080 and 3090 XC3 GPU. For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator. EK XC3 RTX 3080 3090 active backplate EK-Quantum Vector XC3 RTX 3080/3090 Active Backplate EK-Quantum Vector XC3 RTX 3080/3090 active backplate links the water block and the active backplate part with a new terminal, which replaces the stock terminal coming with your water block.

This way the whole enclosure requires only one inlet and one outlet, removing any unneeded additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks allowing maximum cooling. EK XC3 RTX 3080 3090 active backplate The Vector Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM.

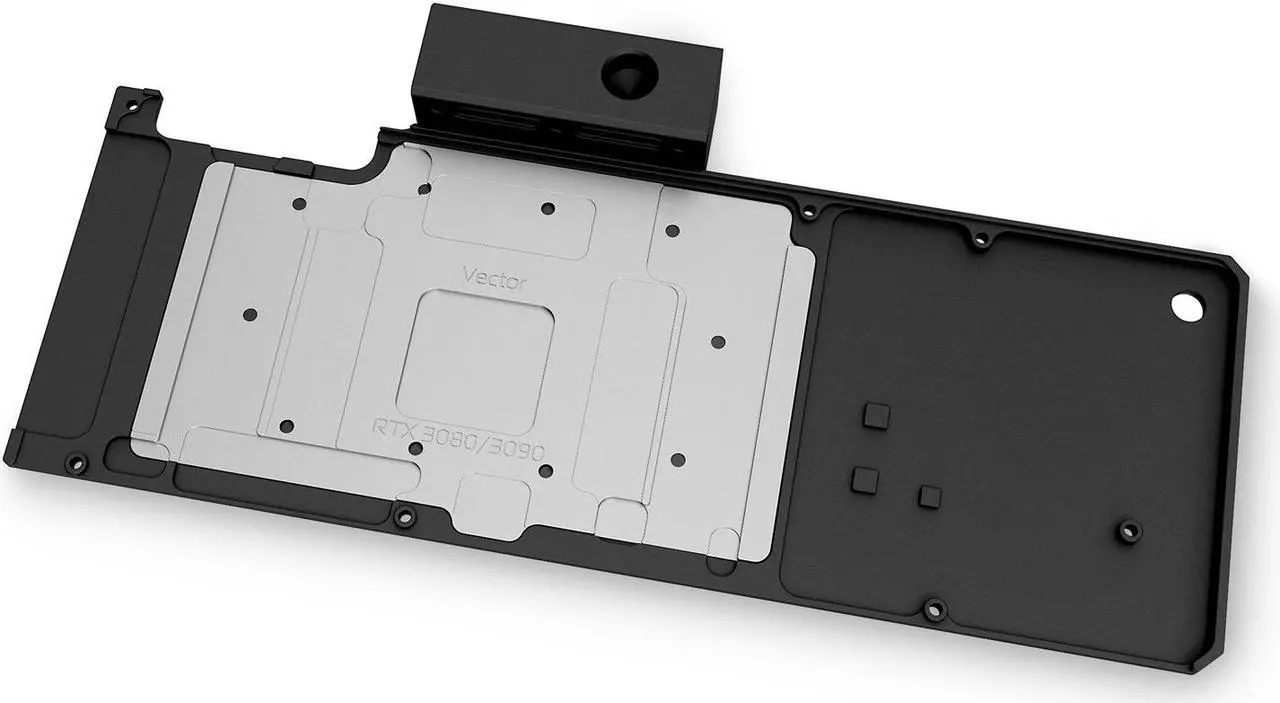

Cooling liquid is channeled over all these critical areas. These newly developed active backplates feature a fin array with 6 wide channels allowing for very low flow restriction. This in turn allows overall lower temperatures, while the active backplate gets more than sufficient surface area for heat transfer. EK XC3 RTX 3080 3090 active backplate The base of this stealthy active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable Black POM acetal. The rest of the backplate is made of anodized aluminum and it does not come in contact with the liquid.

These Vector Active Backplates also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings.
