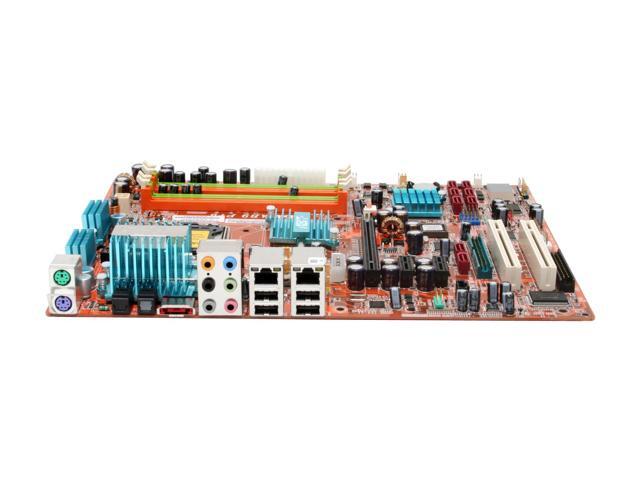

The ABIT AB9 Pro motherboard was one of the first boards on the scene based on the Intel P965 chipset with support for Intel's powerful and energy-efficient Intel Core 2 Duo and Core 2 Extreme processors. It features up to 8 GB dual-channel DDR2 800/667/533 memory with Fast Memory Access technology for maximum platform performance.
Home entertainment applications such as movies, private videos, music, and much more lead to growing demands for storage and high data throughput. The ABIT AB9 Pro is ready for the job with dual PCIe Gigabit LAN, two Firewire ports and a whopping 10 USB 2.0 ports as well as 9 SATA ports and one external SATA connector for unparalleled storage flexibility. This impressive upgradeability and expandability leaves more than enough room for even the most demanding storage needs now and in the future.
The ABIT AB9 Pro motherboard was one of the first boards on the scene based on the Intel P965 chipset with support for Intel's powerful and energy-efficient Intel Core 2 Duo and Core 2 Extreme processors. It features up to 8 GB dual-channel DDR2 800/667/533 memory with Fast Memory Access technology for maximum platform performance.
Home entertainment applications such as movies, private videos, music, and much more lead to growing demands for storage and high data throughput. The ABIT AB9 Pro is ready for the job with dual PCIe Gigabit LAN, two Firewire ports and a whopping 10 USB 2.0 ports as well as 9 SATA ports and one external SATA connector for unparalleled storage flexibility. This impressive upgradeability and expandability leaves more than enough room for even the most demanding storage needs now and in the future.
Intel P965+ICH8R ChipsetThe Intel P965 Express Chipset incorporates Intel Fast Memory Access technology to significantly increase overall system performance by optimizing available bandwidth and reduction of memory access latency. Up to dual-channel DDR2 800 memory is supported by the P965 chipset to provide up to 12.8 GB/s peak memory bandwidth for greater platform performance and memory flexibility. The ICH8R also features SATA 3Gb/s with Intel Matrix Storage Technology support, High-Speed USB 2.0 and HD Audio support.
Intel Core 2 Processor SupportThis motherboard supports the next-generation LGA 775 Intel Core 2 processors, including the Core 2 Duo and Core 2 Extreme. With new Intel Core microarchitecture technology, the Intel Core 2 processors are considered some of the most powerful and energy efficient CPUs in the world.
Silent OTES CoolingThe Silent OTES cooling solution keeps the chipset and MOSFETs cool with the latest heatpipe technology. Heatpipes do without an active fan, cutting down on noise pollution from your case and enhancing the stability of components on your motherboard.
ABIT µGuru TechnologyExclusive ABIT-Engineered motherboard technology is designed for unprecedented power, convenience and control over your PC. µGuru enables end-users to reach a higher state of hardware awareness and enlightenment, providing users the perfect environment with which to maximize system performance and stability.
10 SATA 3Gb/s Connectors with RAIDThe ABIT AB9 PRO features 9 internal SATA 3Gb/s connectors and an external SATA 3Gb/s port to satisfy even the most storage-hungry demands. The JMicron JMB363 and Intel ICH8R feature 8 internal SATA ports with RAID support and the PCIe Silicon Image Sil3132 controller supports an external SATA and an additional internal SATA 3Gb/s interface allowing RAID 0 and RAID 1.
S/PDIF In/Out InterfaceS/PDIF allows connections to today's hottest digital audio devices without signal loss. Connect S/PDIF out to an AC-3 decoder for full-on theater quality digital sound.
Learn more about the Universal abit USA AB9 Pro
Model
Brand
ABIT
Model
AB9 Pro
Supported CPU
CPU Socket Type
LGA 775
CPU Type
Core 2 Duo / Pentium D / Celeron D
FSB
1066/800 MHz
Supported CPU Technologies
Hyper-Threading Technology
Chipsets
Chipset
Intel P965 Express
South Bridge
Intel ICH8R
Onboard Video
Onboard Video Chipset
None
Memory
Number of Memory Slots
4x240pin
Memory Standard
DDR2 800
Maximum Memory Supported
8GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express x16
1 x PCI Express x16
PCI Express x1
2 x PCI Express x1
PCI Slots
2 x PCI Slots
Storage Devices
PATA
1 x ATA100 2 Dev. Max
SATA RAID
0/1/5/10 Matrix RAID
Additional RAID Controller
JMB363, Silicon Image 3132
Onboard Audio
Audio Chipset
HD Audio
Audio Channels
8 Channels
Onboard LAN
Max LAN Speed
2 x 1Gbps
Rear Panel Ports
PS/2
2
USB 1.1/2.0
4 x USB 2.0
eSATA
1 x eSATA 3Gb/s
S/PDIF Out
1 x Optical
S/PDIF In
1 x Optical
Audio Ports
6 Ports
Internal I/O Connectors
Onboard USB
6 x USB 2.0
Physical Spec
Form Factor
ATX
Dimensions (W x L)
12.0" x 9.6"
Power Pin
24 Pin
Features
Features
100% lead-free process and RoHS Compliancy Notice: Only DDR2-800 memory supporting JEDEC approved 1.8V operation with timings of 5-5-5 or 6-6-6 is supported on Intel Desktop Boards based on Intel 965 Express Chipsets.
Packaging

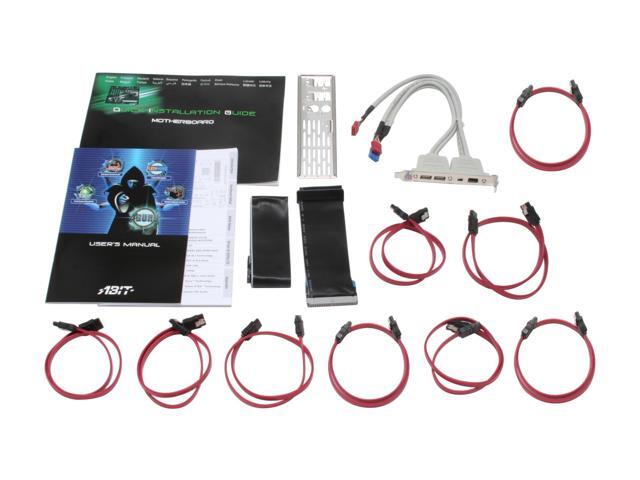

Package Contents
AB9 Pro User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable 9 x SATA Cable 4 x Floppy Drive Diskette IEEE 1394 and USB Bracket
Additional Information
Date First Available
July 17, 2006
