Swann SWNVK-873004-US 8 Channel H.264 Level 8 Channel 3MP Network Video Recorder & 4 x NHD-815 3MP Cameras

  • 8 x BNC
  • H.264 Level
  • Up to 6TB (Internal 1 x 3TB + External 1 x 3TB (via eSATA))
  • 8 Channel
  • Bundled Camera Number 4
Overview
Specs
Reviews
SWANN

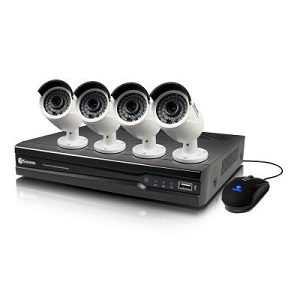

Swann NVR8-7300 8 Channel 3MP Network Video Recorder & 4 x NHD-815 3MP Cameras

8 Channel 3MP Network Video Recorder with pre-installed 2TB HDD / 4 x 3MP Cameras / SwannLink ‘Peer to Peer’ easy network connection software / VGA & HDMI Output / Web and Smartphone remote viewing / Transfer to external storage via USB or network

Be protected & see every detail in HD

SWANN


Product Description


SWANN
  • Swann’s network video recording security system with beyond 1080p high definition live viewing & playback in real-time (30 fps per channel)
  • State-of-the-art digital imaging technology for 9 x the picture sharpness of traditional security systems including analog D1
  • Includes 4 x security cameras capable of generating super high definition 3 megapixels (50% more than 1080p) video with IR cut filters for powerful night vision to 100ft / 30m & a weather-resistant rating of IP66 for indoor & outdoor use. Add 4 more NVR cameras for full 8 channel monitoring
  • You can also hear what’s happening as each camera has a built-in microphone
  • Set & forget by recording continuously from 8 channels for 24 days+ onto a 2TB hard drive (expandable to 6TB^) or even longer with motion detection
  • Save time & have peace of mind by easily locating incident video, then transfer to external storage via USB or network
  • Security in the palm of your hand with live viewing on your Smartphone or tablet including iOS (iPhone, iPad) & Android devices using the free ‘SwannView Link’ app
  • View live in HD on your HDTV via HDMI or VGA connection to your LCD screen
  • Professional surveillance system gives you peace of mind by being able to see the detail you need from longer distances including license plates, faces, clothing colors & more, all in super HD

+24 days recording achieved using lower settings, default settings give 5 days recording



Specifications

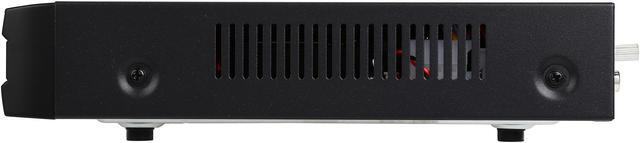

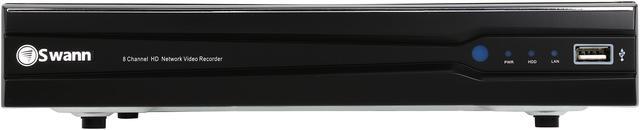

NVR8-7300
Video
Video Input 8 Channels
Video Outputs VGA, HDMI
Display Resolution Up to 1080p
Audio
Audio Input 8, via Ethernet Integrated with Cameras
Audio Output 1 x RCA
Recording
Compression Format H.264
Recording Mode Manual / Motion / Schedule
Recording Resolution 3MP (2048 x 1536 (4:3), 2304 x 1296 (16:9))
Playback Speed Frame Rate up to Real-Time 30fps / 25fps
Hard Drive
HDD 2TB
HDD Capacity Up to 6TB (Internal 1 x 3TB + External 1 x 3TB (via eSATA))

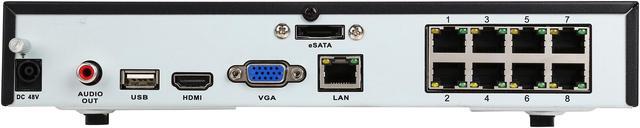

Connection
Network Connection SwannLink ‘Peer-to-Peer’
Network Interface RJ45 x 1
USB Interface USB 2.0 x 2
eSATA Port x 1
General
Operating Power DC 48 V
Dimensions (WxDxH) 10” x 9.0” x 2.0” / 255 x 230 x 51mm
Software
Computer Operating System Windows, Mac OS/td>
Internet Viewing SwannView Link
Handheld Device Supported iOS, Android, 3G/4G Smartphones & Tablets

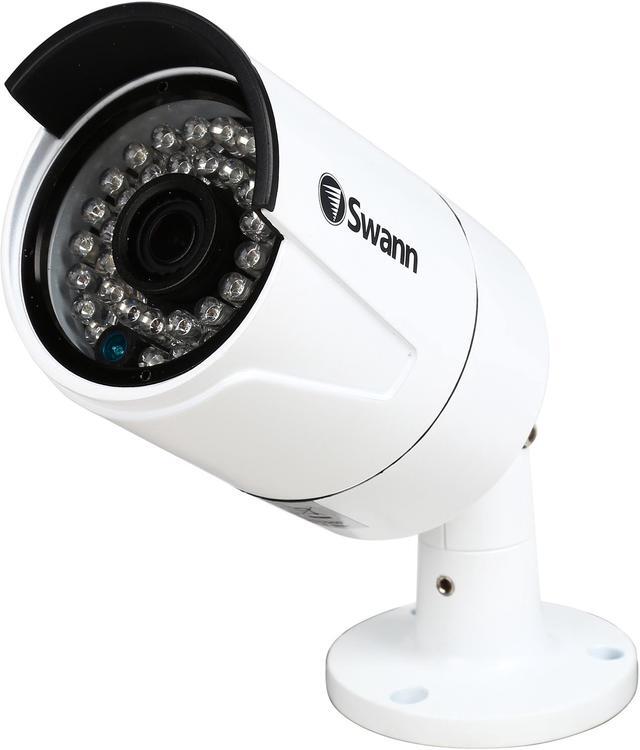

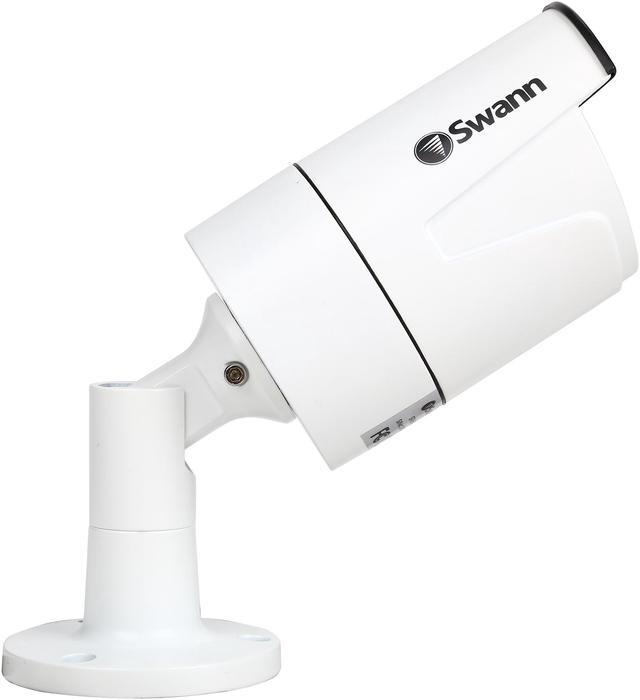

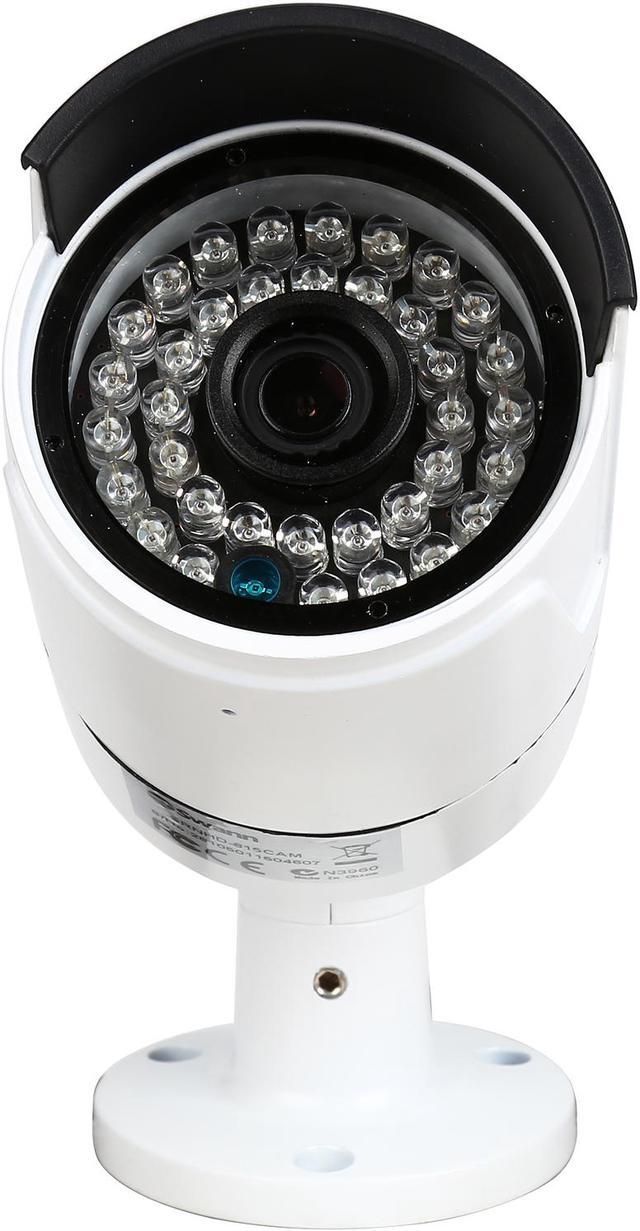

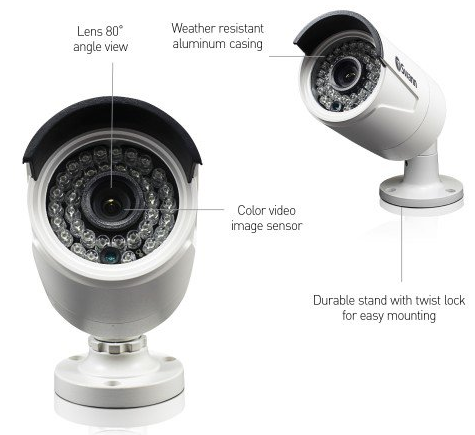

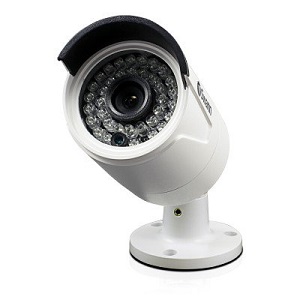

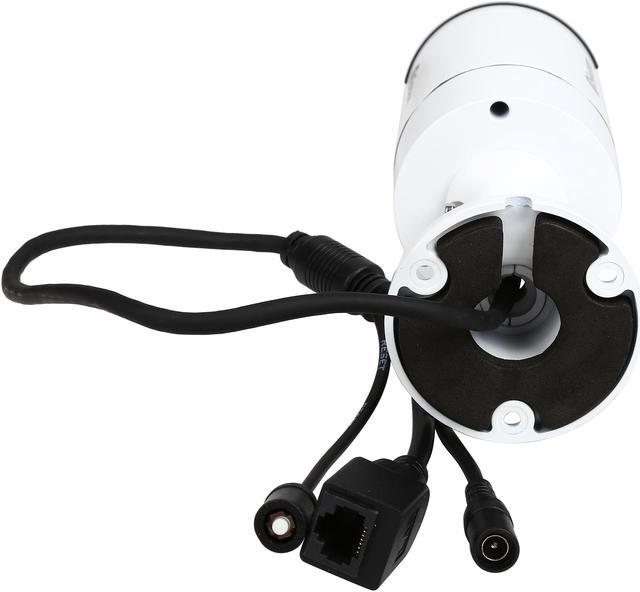

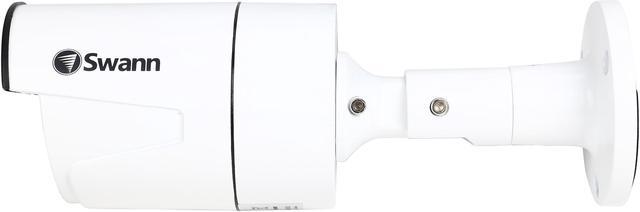

NHD-815 Camera
Video
Video Quality 3MP (2048 x 1536 (4:3), 2304 x 1296 (16:9))
Backlight Compensation Yes
Wide Dynamic Range Yes
Viewing Angle 80°
Audio
Microphone Yes
Audio Range Up to 16ft/5m
Night Vision
Night Vision Distance Up to 100ft / 30m
IR Cut Filter Yes
General
Indoor / Outdoor Indoor or Outdoor, IP66 rated
Operating Power DC12V
Operating Temperature -4°F ~ 122°F / -20°C ~ 50°C
Body Construction Aluminum
Dimensions incl. stand 2.6” x 7.4” x 2.6” / 66 x 188 x 66mm
Weight (incl. stand) 0.961lbs / 436g

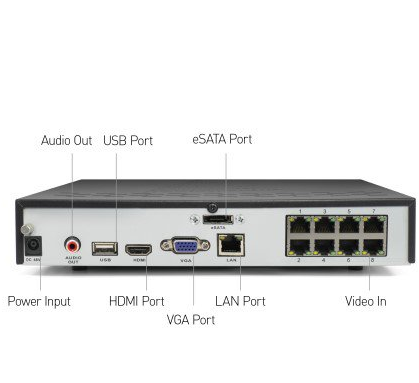

Diagram

SWANN SWANN SWANN

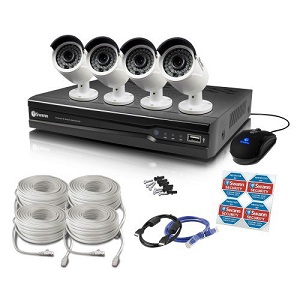

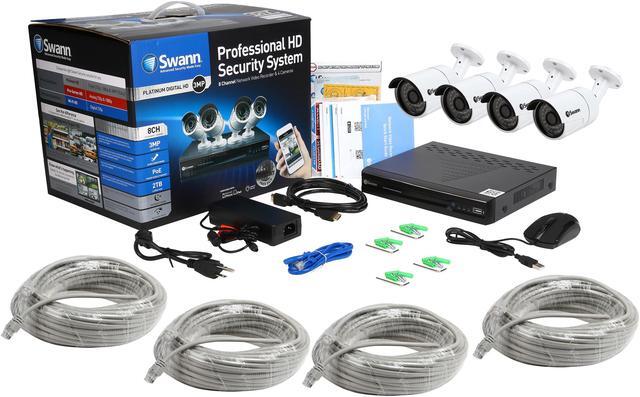

What's Included



SWANN
  • NVR8-7300 8 Channel NVR
  • 2TB Hard Drive (installed)
  • NHD-815 3MP Cameras x 4
  • Cat5e Ethernet Cable x 5 (60ft / 18m X 4, 3ft / 1m x 1)
  • HDMI Cable
  • Mouse
  • Power Adapter
  • Mounting Screws & Plugs
  • Operating Instructions
  • Theft Deterrent Stickers


Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
